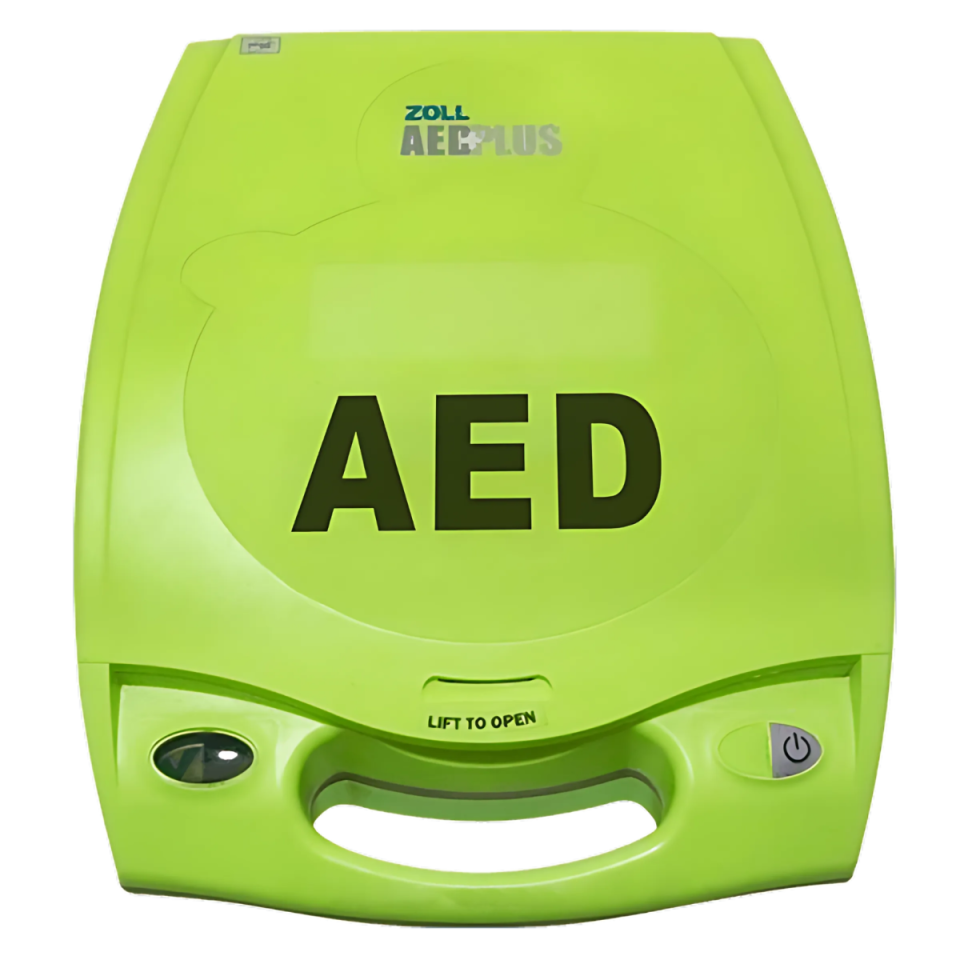

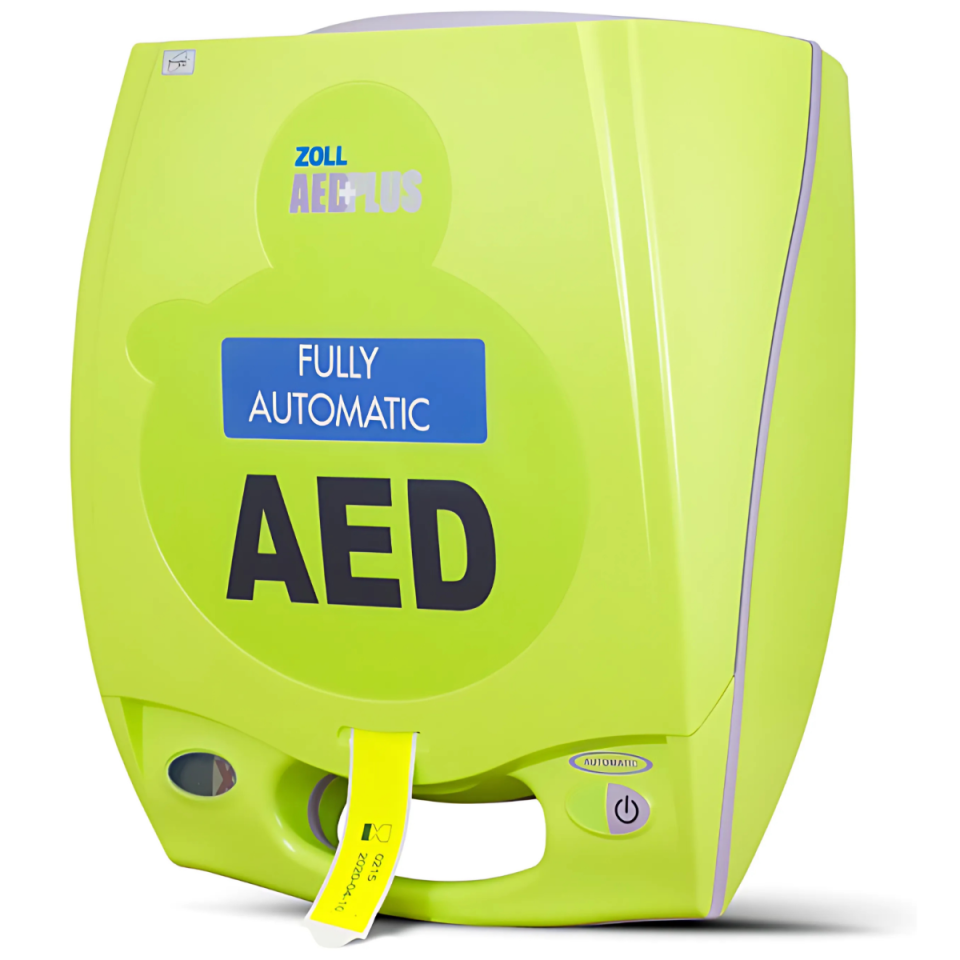

Key Features of the ZOLL AED Plus
- Real-Time CPR Feedback with CPR Puck: Provides instant feedback on compression depth and rate with verbal cues like “Push Harder” or “Good Compressions.”

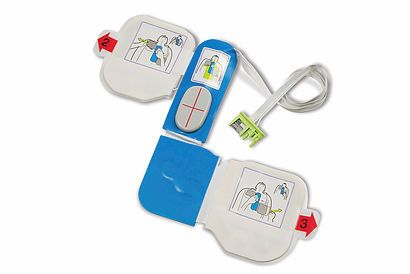

- Intuitive One-Piece Electrode Design: The unique Z-shaped ZOLL Pads allow quick and accurate placement in high-stress situations.
- Semi-Automatic Shock Delivery: Analyses heart rhythm and instructs rescuers when to press the shock button for controlled intervention.
- Rugged & Reliable Design (IP55 Rated): Built to withstand dust, water, and drops up to 1 meter.
- Automatic Self-Tests: Conducts daily, weekly, or monthly self-tests to ensure readiness, with a green checkmark for operational status and a red ‘X’ for maintenance alerts.
- Low-Maintenance Consumables: CPR-D Padz electrodes and AED Plus batteries last up to 5 years, reducing long-term costs.
- Airway Support: The AED Plus lid can be placed under the patient’s shoulders to help keep the airway open.
- Paediatric Capability: When used with ZOLL Pedi-padz II, the AED adjusts shock energy for children under 8 years or under 25kg.
- 5-Year Warranty (Extendable to 7 Years): Backed by ZOLL’s reliable warranty for long-term support.
Technical Specifications
- Shock Energy Levels: 120J – 200J (Adult) | 50J – 85J (Child with Pedi-padz II)
- Operating Temperature: 0 – 50°C (Store in a heated cabinet for optimal performance.)
- Weight: 3.1 kg (with batteries)
- Dimensions: 13.3cm x 24.1cm x 29.2cm
- Included:
- 10 x AED Plus Batteries (Duracell)
- 1 x AED Plus CPRD-Pads
- 1 x Soft Carry Case
- 1 x USB Manual
- 1 x Rescue Kit
Frequently Asked Questions
How to place AED pads on children under 25 kg?
Paediatric defibrillator pads are placed differently than adult pads. Rescuers should first roll the child over and centre the back electrode along the spine between the shoulder blades. Reorient the child on their back and place an electrode on their front, near their sternum. Therefore, there is no paediatric variant of the ZOLL one-piece/ Z pads.
Can I buy ZOLL AED Plus replacement batteries from the store?
Yes! We strongly recommend purchasing official ZOLL AED Plus Duracell batteries from authorised resellers to ensure compatibility and performance.
Why is my ZOLL AED Plus beeping?
If your ZOLL AED Plus starts beeping, it may indicate: Expired or low batteries, expired electrodes, or a failed self-test. To resolve this, replace any expired components immediately or contact us at 01298 872 186 for assistance.
